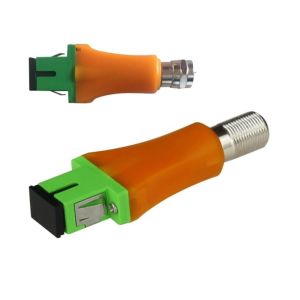

SC/APC to RF CATV Fiber Optic Receiver Mini FTTH Passive Optical Node
SC/APC to RF CATV converter for digital television, fiber to the home. This machine adopts the high
sensitivity optical receiving tube, without power supply, no power consumption.
When the input optical power output level Pin=-1dBm, Vo=6 8dB V, can be economically
and flexibly apply the integration of three networks, fiber to the home network application.
1. No power consumption add isolation passive optical node OR1 is a specialty product
which is specially designed for FTTH-Fiber to the home network structure.
Compact and reasonable internal circuit structure, the housing adopt dedicated aluminum alloy,
wiredrawing oxidation treatment the surface.
2. The performance indicators of No power consumption add isolation passive optical node OR1
are good and the appearance is high-grade and beautiful.
This product has been popular in the international market, was welcomed by foreign customers.
PRODUCT FEATURE:
1.No Power required
2.Work bandwidth 45~1050MHz
3.Output Level=68dBμV (Pin=-1dBm)
APPLICATION:
1.CATV FTTH
2.Integration of three networks
3.FTTH PON
2. Main Performance Parameters
| Wavelength | 1100~1600nm&1550nm |
| Input optical power | 0dBm~-7dBm(Analogy Signal)&0dBm~-10dBm(Digital Signal) |
| Return loss | >45dB |
| Optical connector | FC/APC&SC/APC | FC/PC&SC/PC |
| Bandwidth | 40~862MHz |
| Flatness | ±0.75dB@40~862MHz&1006MHz |
| RF output loss | ≥16dB@40~550MHz ≥ 14dB@550~862&1006MHz |
| Output port level | >68dBuV(0dBmtest) |
| CNR(note1) | ≥51dB |
| CTB(note1) | ≥65dB |
| CSO(note1) | ≥62dB |
| Working temperature | -25℃~+45℃ |
| Output port | 1 |
| RF output impedance | 75 Ω |
| Size | 65*22*10mm |
1. Passvie FTTH Mini DBC Optical Receiver Node is a specialty product which is specially designed
for FTTH-Fiber to the home network structure.
Compact and reasonable internal circuit structure, the housing adopt dedicated aluminum alloy,
wiredrawing oxidation treatment the surface.
2. The performance indicators of Passvie FTTH Mini DBC Optical Receiver Node without Power
Supply are good and the appearance is high-grade and beautiful.
This product has been popular in the international market, was welcomed by foreign customers.
Packaging & Delivery
Single package size: 33X44X30 cm
Single gross weight: 0.5 kg
Package Type:
1000 pcs/carton for Passive FTTH Optical Receiver Node
Lead Time :
| Quantity(Piece) | 1 - 10000 | >10000 |
| Est. Time(day) | 20 | To be negotiated |
